Four-Dimensional Computed Tomography for Localisation of Parathyroid Adenomas

Hong Kong J Radiol 2023 Sep;26(3):185-93 | Epub 18 Sep 2023





¹ Department of Imaging and Interventional Radiology, Prince of Wales Hospital, Hong Kong SAR, China

² Department of Surgery, Prince of Wales Hospital, Hong Kong SAR, China



  Full Article in PDF

Primary hyperparathyroidism is a relatively common disorder with an average population prevalence of 0.3%.[1] [2] Long-term primary hyperparathyroidism with the accompanying hypercalcaemia may cause skeletal (pathological fractures), renal (nephrolithiasis, polyuria, and polydipsia), and gastrointestinal (peptic ulceration and pancreatitis) abnormalities. With more widespread use of biochemical screening in developed countries, the paradigm has shifted to an asymptomatic presentation, with or without elevated calcium levels.[3] [4] [5] [6] [7]



Surgical treatment remains the only curative option, with a shift in approach for the majority of patients with a solitary adenoma from bilateral neck exploration to minimally invasive parathyroidectomy (MIP),[8] offering similar outcomes with reduction in complications and shorter postoperative recovery.[8] [9] Preoperative imaging localisation of the parathyroid glands is essential to a successful MIP. Traditionally achieved by ultrasound and/or technetium-99m (^99mTc) sestamibi scintigraphy, in recent years four-dimensional computed tomography (4DCT) has emerged as a robust alternative modality, offering more accurate localisation.[10] [11] This article on 4DCT reviews the technique, practical guidelines, and tips on what to look for; diagnostic performance; and advantages/disadvantages compared with other imaging modalities.



International guidelines[12] [13] [14] have suggested that preoperative imaging for parathyroid localisation followed by parathyroidectomy is indicated when there is primary hyperparathyroidism together with any of the following conditions: (1) symptomatic hyperparathyroidism; (2) significantly elevated calcium levels (>1 mg/dL or 0.25 mmol/L above upper reference limit); (3) evidence of end-organ involvement, including renal (nephrocalcinosis, hypercalciuria, and impaired renal function) or skeletal (osteoporosis, fragility fractures as a manifestation of osteoporosis or vertebral insufficiency fractures); and (4) recurrent or persistent hyperparathyroidism after initial surgery.[15]



In addition, preoperative imaging followed by parathyroidectomy may also be considered when there is biochemical hyperparathyroidism in any of the following circumstances: (1) presence of neurocognitive or neuropsychiatric symptoms attributable to hyperparathyroidism[16]; (2) aged <50 years old, in the absence of symptoms or evidence of end-organ involvement; and (3) inability or unwillingness to comply with follow-up protocols after the initial diagnosis of primary hyperparathyroidism.



4DCT refers to evaluation of the lesions acquired in three dimensions[17] and their enhancement characteristics over time.[18] Various protocols with different timed phases have been established in the literature,[18] although it most commonly consists of an arterial phase at 25 to 30 seconds after contrast injection, together with venous phase at 45 to 60 seconds and/or a delayed phase at 80 to 90 seconds. A very delayed phase at approximately 120 seconds has also been adopted in some centres.[19] The addition of a non-contrast phase is also controversial; a previous study has demonstrated that 22% of parathyroid lesions might have been missed if a pre-contrast scan had been excluded,[20] although another retrospective study[21] showed that a two-phase protocol has only slightly reduced accuracy which has to be balanced with the radiation exposure of an additional phase. The use of dual energy acquisition to generate virtual non-contrast images for parathyroid adenomas have also been reported,[22] [23] although in our experience the virtual non-contrast images based on subtraction of iodine signal also diminished the hyperattenuation of the normal thyroid parenchyma, rendering more difficult visualisation of the parathyroid glands in the perithyroidal region.



Optimisation of the imaging protocol is of foremost importance in achieving accurate parathyroid localisation. The range of scanning has to cover all potential sites of ectopic parathyroid glands, from angle of the mandible to the upper mediastinum at the level of the aortic arch, although the pre-contrast scan can be limited to the thyroid bed (from hyoid bone to the inferior margin of clavicular head).[17] Prior to scanning, a technique to move the shoulders down is also applied by asking the patient to pull tightly onto a traction bedsheet across his/her soles (Figure 1) so as to reduce the beam hardening artefacts over the lower pole of the thyroid, the level where inferior parathyroid adenomas are most commonly located (Figure 2).[17] A rapid rate of contrast injection (at least 4 mL/s) is also important to better demonstrate the differences in enhancement characteristics. Contrast injection should be performed via a right arm vein to minimise streak artefacts over the midline upper mediastinum and lower neck. In our centre, we perform a non-contrast scan through the thyroid bed, followed by an arterial phase at 25 seconds and a delayed phase at 80 seconds in a caudocranial direction from the aortic arch through the mandibular angle. Scanning parameters using SOMATOM Drive system (Siemens Healthineers, Munich, Germany) are as follows: 100kV, 300 mA (pre-contrast) and 400 mA (arterial and delayed), pitch 0.8, and 0.6-mm section thickness with multiplanar reconstruction.



Figure 1. Technique to lower the shoulders prior to scanning using a traction bedsheet strapped around the patient’s soles.

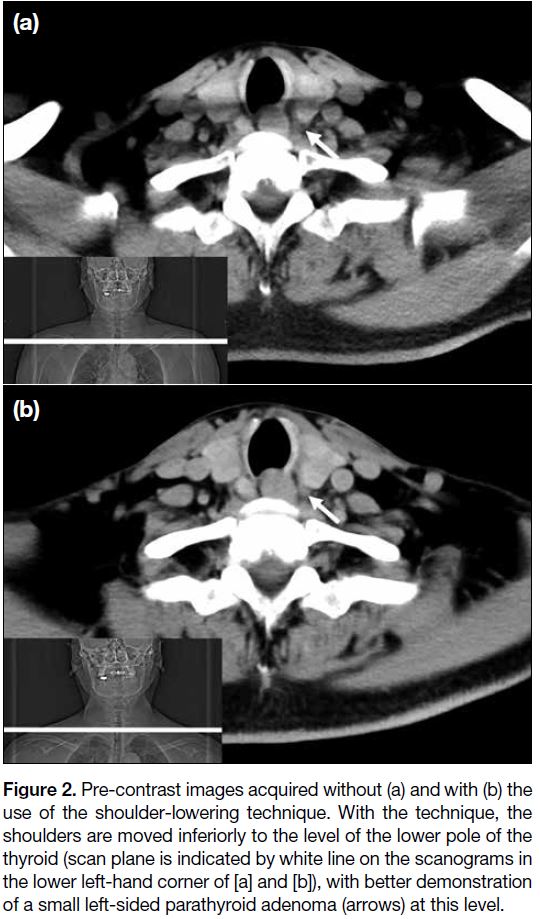

Figure 2. Pre-contrast images acquired without (a) and with (b) the use of the shoulder-lowering technique. With the technique, the shoulders are moved inferiorly to the level of the lower pole of the thyroid (scan plane is indicated by white line on the scanograms in the lower left-hand corner of [a] and [b]), with better demonstration of a small left-sided parathyroid adenoma (arrows) at this level.



A structured template for reporting is useful to ensure that all important areas for management are included.



Most cases of primary hyperparathyroidism (85%-90%) are the result of a solitary hyperfunctioning adenoma, with multiglandular disease (6%), double adenoma (4%), and carcinoma (1%) being less common. Conversely, most if not all second hyperparathyroidism from renal failure is due to multiglandular hyperplasia.



The number of enlarged, hyperfunctioning parathyroid glands is an important factor for surgical planning. Patients with solitary lesions are eligible for MIP while patients with >1 lesion may require a unilateral or bilateral neck exploration.



Approximately 80% of patients have four normal glands in two symmetrical pairs. The superior glands originate from the fourth pharyngeal pouch and descend caudally, orthotopically located posterior to the upper two-thirds of the thyroid lobe (most at the equator of the gland) and posterior to the recurrent laryngeal nerve. The inferior parathyroid glands originate from the third pharyngeal pouch, joining the thymus with a longer route of descent and are usually found more ventrally around the inferior thyroid poles and anterior to the recurrent laryngeal nerve.[24] [25] Supernumerary glands have been reported in approximately 15% of patients, while in 3% of cases only three glands can be found.[26]



Ectopic parathyroid glands have a prevalence of 14% to 16% in patients with hyperparathyroidism and up to 43% in anatomical studies.[27] Superior ectopic glands are most commonly found in the retro-oesophageal region and trachea-oesophageal groove.[28] [29] These may result from over-descent in 10% to 20% of cases, mimicking, or even more caudal to, an orthotopic inferior parathyroid.[30] Inferior ectopic parathyroid glands have a more variable location due to the longer descent, most commonly found in the thymic region and upper mediastinum with less common sites including undescended glands above the superior thyroid pole or within the carotid sheath.[28] [29] Intrathyroid parathyroid glands have also been reported in 1% to 3% of patients[31] [32] and are often difficult to detect by preoperative imaging or intra-operatively.



Firstly, a detailed description of location in relation to level and adjacent structures is required, such as hyoid, larynx, trachea, oesophagus, thyroid gland, carotid sheath, suprasternal notch, and mediastinal vessels. The relationship of an enlarged parathyroid gland to the trachea-oesophageal groove (expected location of recurrent laryngeal nerve) is also important, as superior parathyroid glands are posterior and inferior parathyroid glands are anterior to the groove (Figure 3). Secondly, check all areas from the angle of the mandible down to and including to the superior mediastinum. Lastly, the presence of an intervening fat plane is useful in distinguishing a parathyroid adenoma from a thyroid nodule, although this can be absent in small parathyroid adenomas within or abutting the thyroid capsule. It is therefore important to check all scanned phases, particularly the pre-contrast phase where parathyroid adenomas are relatively hypodense to the thyroid parenchyma.

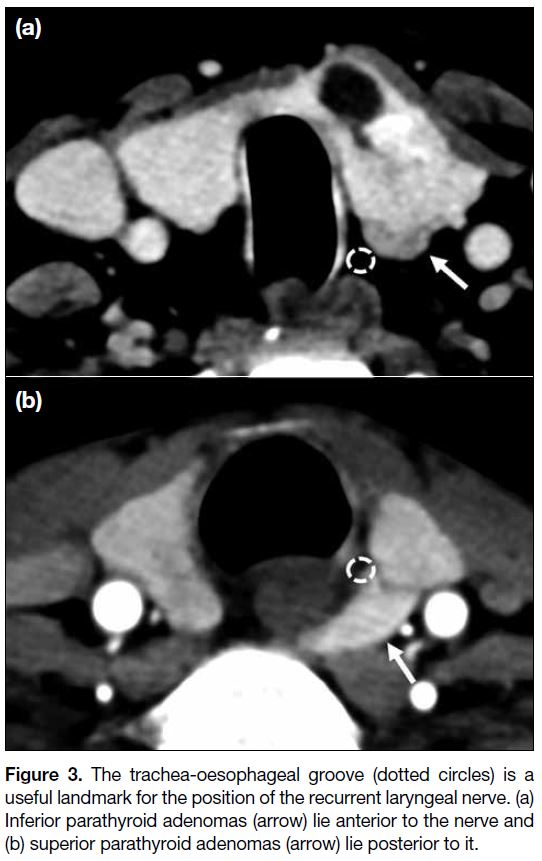

Figure 3. The trachea-oesophageal groove (dotted circles) is a useful landmark for the position of the recurrent laryngeal nerve. (a) Inferior parathyroid adenomas (arrow) lie anterior to the nerve and (b) superior parathyroid adenomas (arrow) lie posterior to it.



The normal parathyroid gland is up to 2 mm in thickness and 5 to 10 mm in length[33]; hence, a gland is usually only visualised when enlarged and abnormal. Enlarged glands may be oval, round, pyramidal or lobulated and tend to be larger in parathyroid adenomas than multiple gland hyperplasia.



The typical adenoma enhancement pattern would be hypodense to the thyroid on pre-contrast, hyperenhancing relative to the thyroid on arterial phase, and hypoenhancing on delayed phase. However, these imaging features are not consistently present in all parathyroid adenomas, as a recent study using dynamic CT[18] has demonstrated that hyperfunctioning parathyroid tissue only shows a short period of hyperenhancement relative to the thyroid, with vast heterogeneity in the presence and timing of hyperenhancement amongst different adenomas. Three types of variations in enhancement have been previously described (Figures 4, 5, and 6).[20]

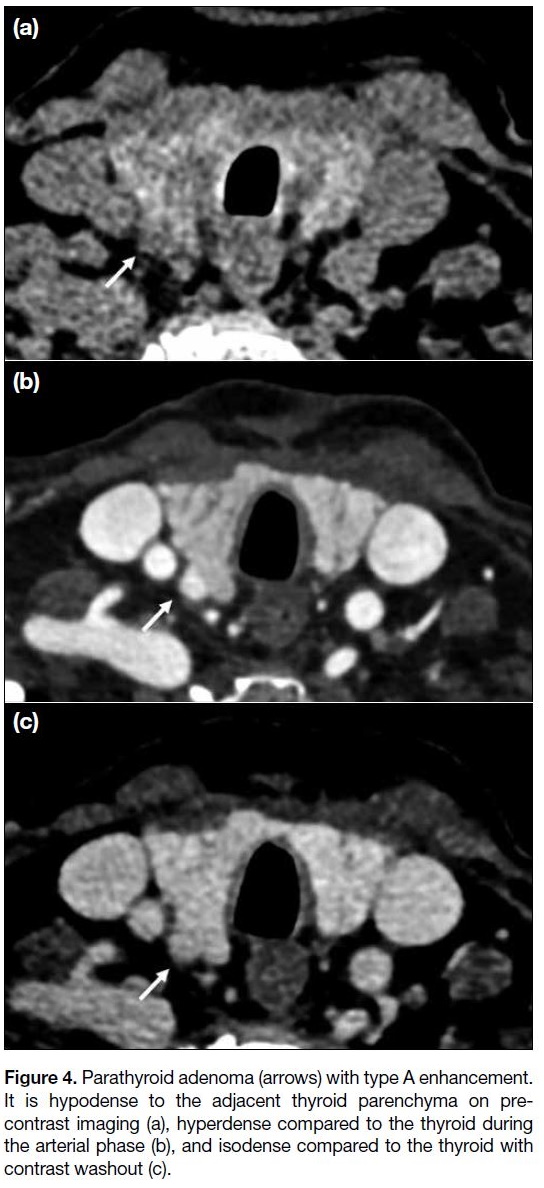

Figure 4. Parathyroid adenoma (arrows) with type A enhancement. It is hypodense to the adjacent thyroid parenchyma on pre-contrast imaging (a), hyperdense compared to the thyroid during the arterial phase (b), and isodense compared to the thyroid with contrast washout (c).

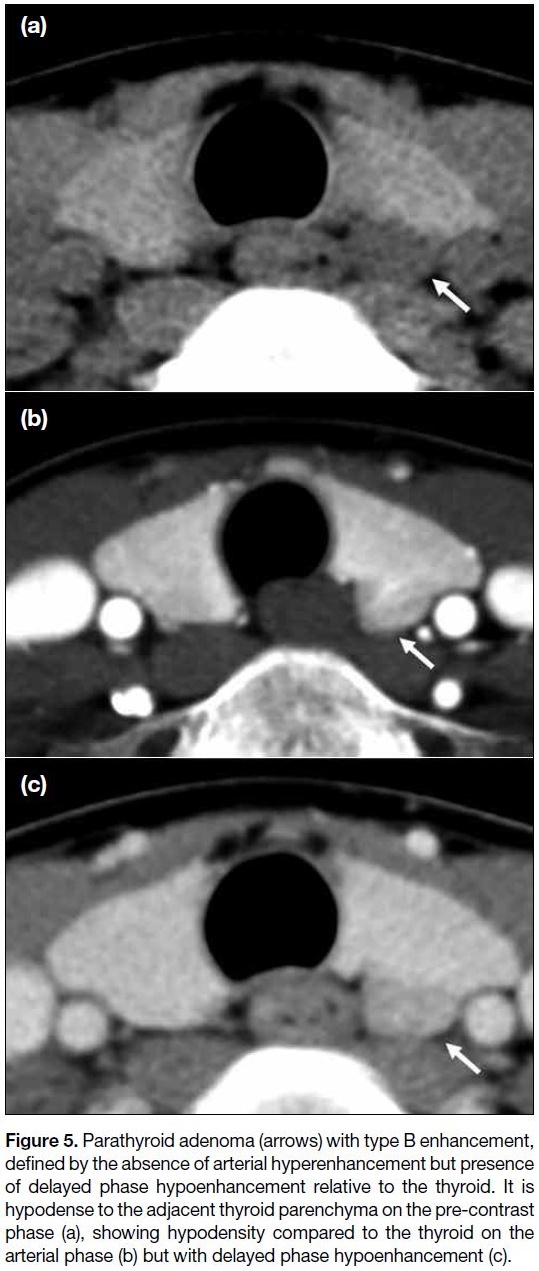

Figure 5. Parathyroid adenoma (arrows) with type B enhancement, defined by the absence of arterial hyperenhancement but presence of delayed phase hypoenhancement relative to the thyroid. It is hypodense to the adjacent thyroid parenchyma on the pre-contrast phase (a), showing hypodensity compared to the thyroid on the arterial phase (b) but with delayed phase hypoenhancement (c).

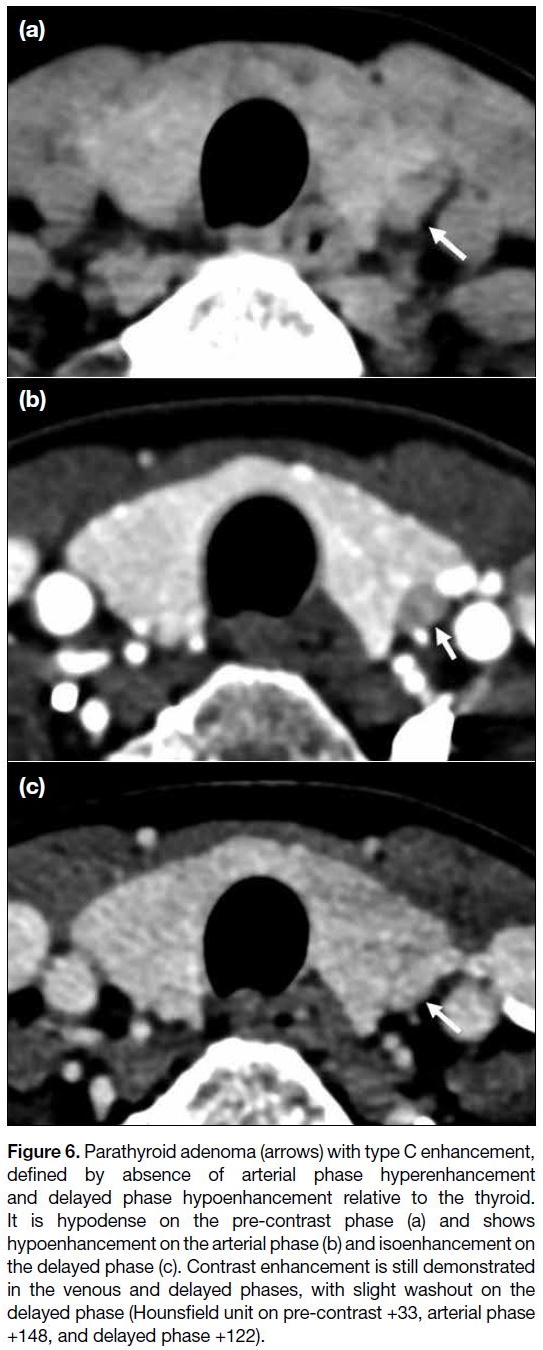

Figure 6. Parathyroid adenoma (arrows) with type C enhancement, defined by absence of arterial phase hyperenhancement and delayed phase hypoenhancement relative to the thyroid. It is hypodense on the pre-contrast phase (a) and shows hypoenhancement on the arterial phase (b) and isoenhancement on the delayed phase (c). Contrast enhancement is still demonstrated in the venous and delayed phases, with slight washout on the delayed phase (Hounsfield unit on pre-contrast +33, arterial phase +148, and delayed phase +122).



The presence of a fat plane between the nodule and thyroid is used to discriminate a parathyroid adenoma from a thyroid nodule.



The presence of a polar vessel[34] entering the superior or inferior pole of the parathyroid is a useful ancillary feature to support the diagnosis of parathyroid adenoma (Figure 7a). Rim or central calcification (Figure 7b), internal cystic changes, or necrosis have been described as variant appearances of parathyroid adenomas, which can be present in up to 10% of cases.[35] [36] Acute necrosis in a parathyroid adenoma has been associated with spontaneous reduction in hormone levels.[37] Accurate differentiation of parathyroid carcinoma from adenoma is difficult,[38] although the presence of a large (>3 cm) parathyroid gland, irregular borders and peritumoural infiltration into adjacent structures aids in distinguishing carcinoma from adenoma.[39] [40]

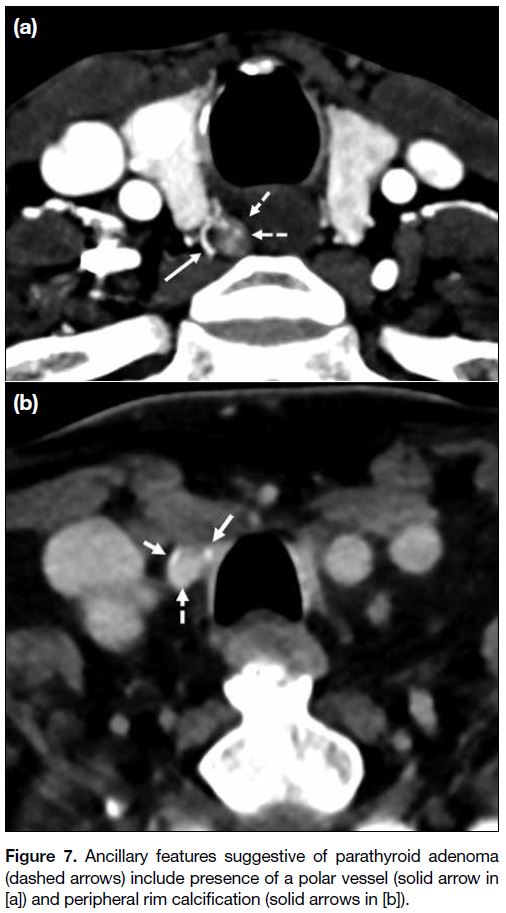

Figure 7. Ancillary features suggestive of parathyroid adenoma (dashed arrows) include presence of a polar vessel (solid arrow in [a]) and peripheral rim calcification (solid arrows in [b]).



Firstly, small lymph nodes may be mistaken for parathyroid adenomas, although the presence of progressive enhancement on delayed phase and the presence of a fatty hilum are useful distinguishing features. Secondly, for indeterminate lesions it is important to review previous ultrasound and scintigraphy, as lesions concordant with previous imaging findings afford much more diagnostic confidence. Repeating the ultrasound, especially in cases where a previous study was negative or discordant from 4DCT, is an important problem-solving tool and increases diagnostic confidence without incurring additional radiation exposure (Figure 8).

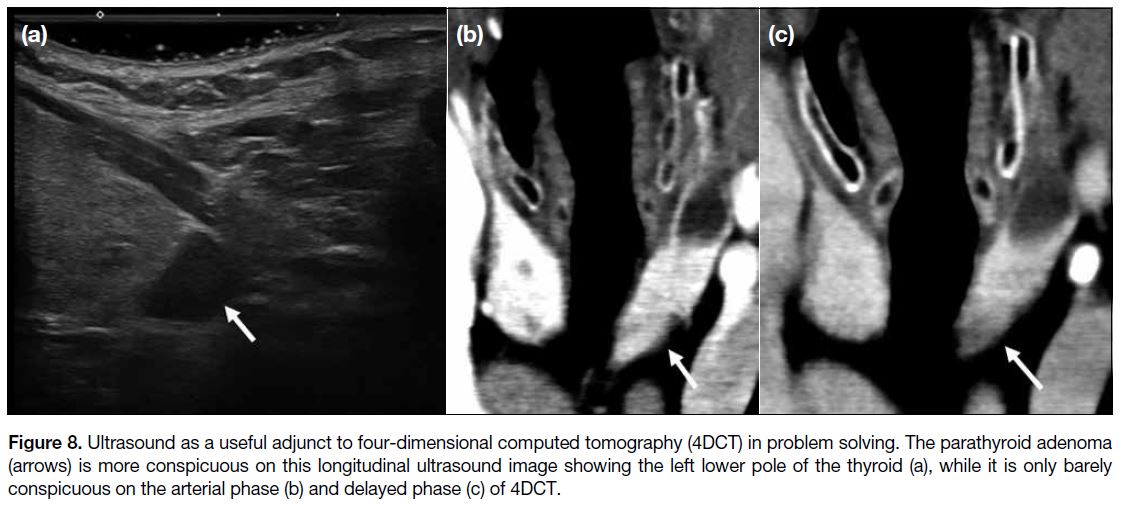

Figure 8. Ultrasound as a useful adjunct to four-dimensional computed tomography (4DCT) in problem solving. The parathyroid adenoma (arrows) is more conspicuous on this longitudinal ultrasound image showing the left lower pole of the thyroid (a), while it is only barely conspicuous on the arterial phase (b) and delayed phase (c) of 4DCT.



The presence of concomitant thyroid nodules should be reported, which requires further evaluation with ultrasound and/or fine-needle aspiration cytology, as any suspicious thyroid nodule would necessitate a hemi- or total thyroidectomy in the same operation. This is also useful in investigating the possibility of a rare intrathyroid parathyroid adenoma, especially in patients where no other candidate lesion is identified. In addition, the presence of anomalies of the major arteries, such as an aberrant right subclavian artery, which can be associated with a non-recurrent laryngeal nerve,[41] should be highlighted as this constitutes potential surgical hazard. Evidence of any previous head and neck surgery and altered anatomy should also be identified for accurate operative planning.



Ultrasound, nuclear scintigraphy, and 4DCT are widely accepted modalities for parathyroid localisation.[42] While 4DCT has been adopted in some centres as first-line imaging,[43] the choice and sequence of imaging investigations remain variable across centres depending on availability and expertise.[44] [45] One of the main advantages of 4DCT is the ability to clearly demonstrate to the surgeon the location of a parathyroid adenoma and its relationship to adjacent structures. Multiple studies have proven 4DCT as a robust technique in parathyroid localisation,[10] [19] [44] [46] with the latest meta-analysis showing a sensitivity of 81% and positive predictive value of 91%.[47] The 4DCT has been shown to be superior to ^99mTc sestamibi and ultrasound for localisation in several studies,[10] [11] [48] although some other studies showed no significant difference in diagnostic accuracy.[49] [50] In our centre, a combination of parathyroid ultrasound and ^99mTc sestamibi scintigraphy, which are more readily available, still serves as a first-line diagnostic approach while 4DCT is reserved for patients with negative or discordant localisation. Repeated parathyroid ultrasound in the same session as 4DCT can often enhance diagnostic confidence.



The 4DCT technique has also been proven useful in hyperparathyroid patients with previously negative ultrasound and/or scintigraphy.[51] Limited studies have also explored its application in patients with secondary hyperparathyroidism,[52] in whom bilateral neck exploration remains mandatory but which can identify ectopic or supernumerary glands to improve the rate of surgical success.[44]



The issue of radiation exposure is also of concern. A previous study by Mahajan et al[53] has shown that the effective dose of 4DCT (10.4 mSv) is higher than ^99mTc sestamibi scintigraphy (7.8 mSv). Although more recent studies have demonstrated a lower effective dose of 4DCT (4.5-8.9 mSv),[43] the organ dose to the thyroid bed from 4DCT remains significantly higher. The risk of attributed malignancy to radiation exposure from 4DCT should be balanced with the benefit of reducing surgical morbidity, by converting to a less complex MIP and lower chance of reoperation. This is especially helpful in younger patients where radiation exposure bears a more significant long-term cumulative effect. Despite a younger age of presentation of hyperparathyroidism in the Chinese population,[54] the majority of patients are still >50 years of age and the benefits of proceeding with 4DCT examination is mostly justified. In our institution, a combination of ultrasound and ^99mTc sestamibi scintigraphy remains the initial investigation, with patients referred for 4DCT if the initial workup is inconclusive.



Finally, it is important to emphasise that all modalities have their advantages and disadvantages. Therefore, a multimodality approach and careful review of all previous parathyroid imaging studies are the keys to increase diagnostic confidence.



4DCT of the parathyroids offers a promising alternative for preoperative localisation of parathyroid adenoma, not only as a problem-solving tool but with potential for becoming the modality of choice in the initial workup. A good understanding of underlying anatomy and imaging principles, optimisation of CT protocol, correlation with other imaging modalities, and structured reporting tailored to answer specific question by surgeons are all important in delivering accurate preoperative localisation for better surgical outcomes.
