Distribution of Urate Crystal Deposition in the Hands and Wrists of Patients with Chronic Gout


Y Leng, DLY Chow, SK Chui, NSK Ip, SWC Chan, KY Choi, AOC Li

Distribution of Urate Crystal Deposition in the Hands and Wrists of Patients with Chronic Gout
Y Leng1, DLY Chow1, SK Chui1, NSK Ip1, SWC Chan1, KY Choi2, AOC Li1
1 Department of Radiology, Tuen Mun Hospital, Hong Kong
2 Department of Orthopaedics and Traumatology, Tuen Mun Hospital, Hong Kong
Correspondence: Dr Y Leng, Department of Radiology, Tuen Mun Hospital, Hong Kong. Email: ly108@ha.org.hk
Submitted: 27 Nov 2019; Accepted: 21 Jan 2020.
Contributors: All authors designed the study. YL, AOCL, SKC and KYC acquired the data. YL analysed the data and drafted the manuscript. All authors critically revised the manuscript for important intellectual content. All authors had full access to the data, contributed to the study, approved the final version for publication, and take responsibility for its accuracy and integrity.
Conflicts of Interest: All authors have disclosed no conflicts of interest.
Funding/Support: This research received no specific grant from any funding agency in the public, commercial, or not-for-profit sectors.
Ethics Approval: The study was approved by the New Territories West Cluster Clinical Ethics Committee (Ref NTWC/REC/19082).
We sought to examine the frequency and patterns of monosodium urate (MSU) crystal deposition in the hand/wrist in non-acute gout patients using dual-energy computed tomography (DECT).
All hand/wrist DECT imaging data of patients with chronic tophaceous gout undergoing their first examination before dissolution therapy from March 2015 to March 2019 were identified. Cases without positive MSU crystal deposition were excluded. The reports and images of the positive cases were retrospectively analysed, and the anatomical locations of all urate crystal depositions were recorded.
A total of 48 cases were identified with positive findings. Thirty of the cases had undergone DECT of both hands, and 18 had undergone DECT of a single hand. In total, 60 hands/wrists had flexor tendon involvement. The carpal joints were the most commonly involved site (78.2%). The carpal tunnel was the most commonly involved soft tissue site in the hand and wrist (71.8%), followed by the fourth (55.1%) and fifth (53.8%) extensor compartments. The second digit extensor digitorum (47.4%) was the most commonly involved soft tissue site in the hand while the fourth digit flexor digitorum was the most commonly (46.2%) involved flexor tendon in the hand. In the hand and wrist soft tissue sites, extensor pollicis brevis (11.5%), flexor carpi ulnaris (11.5%) and extensor compartment I (11.5%) were involved least commonly. We found Zones II (75%) and IV (78.3%) to be the most commonly involved flexor tendon zones in the hand.
In this observational study, we have provided a detailed analysis of hand and wrist urate distribution in gout.
Key Words: Gout; Hand; Tomography, X-ray computed; Uric acid
Gout is a disease associated with deposition of monosodium urate (MSU) crystals. Acute gouty arthritis is characterised by the rapid onset of severe pain, swelling, warmth, erythema, and decreased range of motion in the affected joint.[1] Chronic tophaceous gout is associated with progressive joint damage, chronic pain, and disability.
The diagnosis of gout has been based on clinical presentation, laboratory results, joint aspiration, and imaging. Patients typically present with mono-articular arthritis, often affecting the first metatarsophalangeal (MTP) joint.[2] Hyperuricaemia is an inconsistent finding. Patients may have ‘normal’ serum urate levels during an acute gout attack. Some patients may have ‘asymptomatic hyperuricaemia’ without clinical manifestations of gout or urate crystal deposition.[3] The gold standard for diagnosis of gout is presence of birefringent MSU crystals from the joint aspirate. However, joint aspiration is a painful invasive procedure and may be false-negative for MSU crystals even when acute gouty arthritis is present.
Various imaging modalities have been used for the diagnosis of gout, such as radiography, ultrasound, computed tomography (CT), and magnetic resonance imaging (MRI). On plain X-ray, ‘punched-out’ erosions with overhanging edges are a typical manifestation of chronic gout. Ultrasound features of gout include joint effusion, synovitis, erosions, tophi, crystalline aggregates and the ‘double contour sign’ which is existence of a hyperechoic band over anechoic cartilage.[4] MRI features of gouty arthropathy are variable and nonspecific including tophi with variable intensity on T1-weighted or T2-weighted sequences and variable enhancement pattern.[5] These imaging modalities are not highly sensitive or specific for identifying MSU crystals.
Dual-energy CT (DECT) is advanced technology that enables excellent visualisation of soft tissue structures, such as tendons, ligaments, and bursae. It has been used for the non-invasive diagnosis of established gout with high sensitivity and specificity.[6] DECT depends on an accumulation of MSU crystals and is not particularly accurate for determining acute, early gout. DECT is particularly helpful in accurate quantification of MSU deposits and for follow-up. The hand and wrist are common sites of gouty crystal deposition. However, MSU involvement of bone/joint and soft tissue in the hands and wrists has not been systematically characterised.
The aim of this study was to examine the frequency and patterns of bone/joint and soft tissue involvement in the hand and wrist of patients with gout using DECT. We hope to improve understanding of the pathogenesis, prompt diagnosis, and management of gout with more detailed knowledge of urate deposition in this disease.
This was a retrospective, observational study. In our hospital, patients with chronic tophaceous gout are referred for DECT from the Department of Orthopaedics for pretreatment assessment. Referred patients undergoing their first DECT of the hand and wrist between March 2015 and March 2019 were identified via the electronic health records system. Cases with positive MSU crystal deposition in the hand and wrist were included.
Scans were performed using our dual-source DECT scanner (Siemens SOMATOM Definition Flash). Parameters were 140 kV for one tube and 80 kV for the other. A two-material decomposition algorithm was performed on a multi-technique CT workspace. The material-specific difference in attenuation of urate between the two energy levels at 80 kV and 140 kV allowed accurate detection of MSU, which was then colour coded as green and fused onto the standard greyscale CT image. These were reviewed as both cross-sectional and three-dimensional images.
We analysed the reports and images of the positive cases, with locations of all urate deposition recorded and classified by anatomical location. MSU crystal deposition in DECT scans were scored at the tendon sites, joints, carpal tunnel, and flexor tendon anatomic zones according to the classification of Kleinert et al[7] and Verdan.[8] Zone V (from the musculotendinous junction to the proximal aspect of the carpal tunnel) was not included in the analysis because it was not completely included in the scan range in some of the cases.
Among 73 referred patients undergoing first DECT of the hand and wrist during the study period, 48 patients were identified with positive findings who met the inclusion criteria. Patients with positive findings consisted of 47 men and one woman with median age 61 years (range, 31-89 years). Among them, 30 patients underwent DECT of both hands and 18 patients underwent DECT of a single hand. Therefore, a total of 78 wrists and hands were affected.
As shown in Table 1, the carpal tunnel was the most commonly involved soft tissue site at the wrist (71.8%) [Figure 1], followed by the fourth (55.1%) and fifth (53.8%) extensor compartments (Figure 2). In the hands, the second digit extensor digitorum tendon was the most commonly (47.4%) involved soft tissue site in the hand, while the fourth digit flexor digitorum was the most commonly (46.2%) involved flexor tendon in the hand (Table 2). The intercarpal joints were the most commonly involved site (78.2%). A total of 60 (77%) of the 78 hands/wrists studied had flexor tendon involvement. Zones II (75%) and IV (78.3%) were the most commonly involved flexor tendon zones (Table 3).

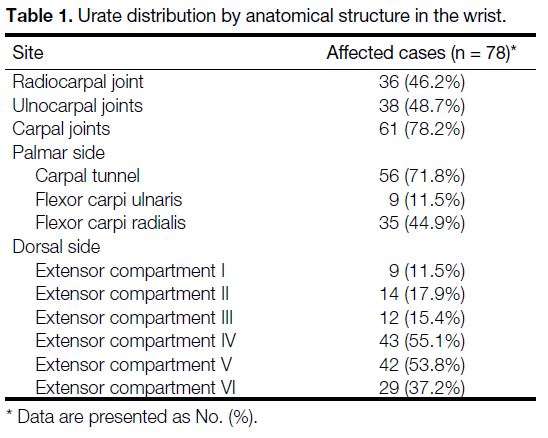

Table 1. Urate distribution by anatomical structure in the wrist.

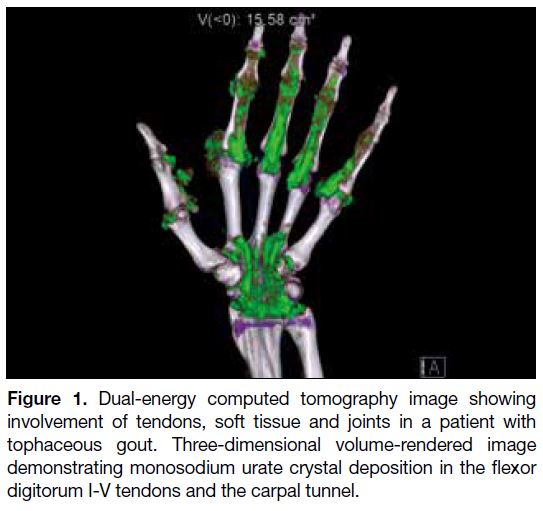

Figure 1. Dual-energy computed tomography image showing involvement of tendons, soft tissue and joints in a patient with tophaceous gout. Three-dimensional volume-rendered image demonstrating monosodium urate crystal deposition in the flexor digitorum I-V tendons and the carpal tunnel.

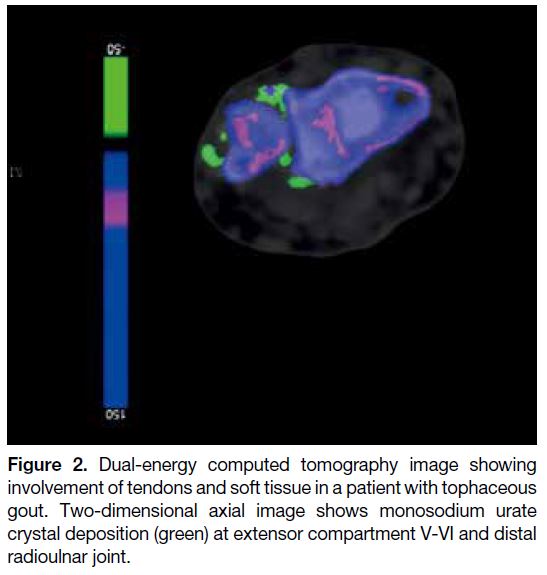

Figure 2. Dual-energy computed tomography image showing involvement of tendons and soft tissue in a patient with tophaceous gout. Two-dimensional axial image shows monosodium urate crystal deposition (green) at extensor compartment V-VI and distal radioulnar joint.

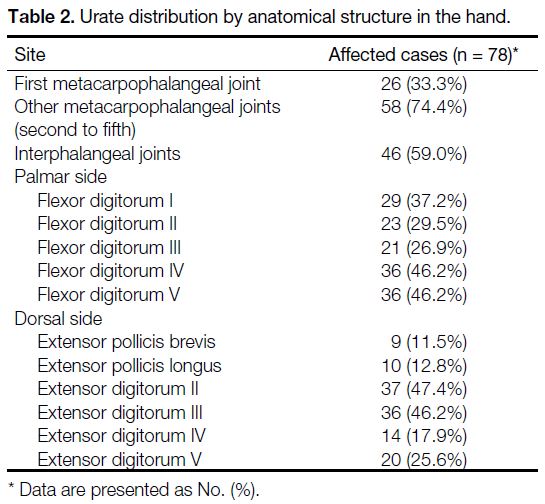

Table 2. Urate distribution by anatomical structure in the hand.

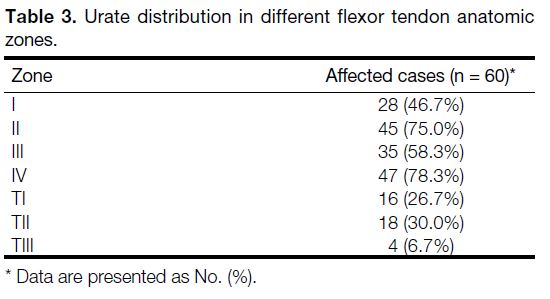

Table 3. Urate distribution in different flexor tendon anatomic zones.
The reported prevalence of gout in Hong Kong has risen continuously over the past decade. In 2016, the crude prevalence of gout in Hong Kong was 2.9%, which is similar to rates reported in Western countries.[9]
A few studies about the distribution of gout have shown that the lower extremity is more often affected than the upper extremity.[10] [11] [12] Gout in the first MTP joint is accepted as the most common site of involvement in clinical and radiographic studies.[13] [14] A DECT study of 148 newly diagnosed gout patients showed the first MTP joint to be the most common site of urate deposition (44.6%) and much more common than other MTP joints (17.6%). We found that gout affecting the first MCP joint is less common than the other MCP joints.
Our study shows that MSU crystal deposition in the hand and wrist is most common in the carpal joints (78.2%), followed by the MCP joints (75.6%), and interphalangeal joints (59%). This is comparable to previous studies. Research done by Mallinson et al[10] reviewing 148 DECT cases for the distribution of urate deposition showed that carpus (12.5%) also had higher urate deposition than interphalangeal joints (6.4%) and MCP joints (7.4%). Our study has a much higher prevalence of positive findings than Mallinson et al,[10] which included DECT images of hands/wrists, feet/ankles, elbows, and knees, whereas our study focused only on the hands and wrists. Another study on DECT of 97 patients with gout also showed that the carpal joints (56.7%) had a higher rate of urate deposition than the metacarpophalangeal joints (42.3%).[15]
Our results show that MSU crystal deposition in the tendons of the hands/wrists is very common in patients with gout. A previous DECT study of tendon involvement in the feet of 92 patients with gout also found common tendon/ligament involvement in about 65% of feet.[16] The exact mechanism on why there is crystal deposition on tendons is not known. Biomechanical strain as a result of the pressure burden on these tendons may contribute to crystal deposition.[17] Spontaneous rupture of tendons secondary to gouty tophaceous deposits can occur.[18] [19] MSU crystal deposition in hands/wrists can affect function. In a study of 20 patients with gout, tophaceous joint disease strongly predicted impaired hand function.[20] The number of joints in the hand with tophi was the strongest single predictor of the Sollerman score, and also predicted other measures of hand mobility and function. Kleinert et al[7] and Verdan[8] have classified tendon injuries into five anatomic zones which can have impact on flexor tendon injury treatment and prognosis. Our study analysed MSU crystal deposition in four of the five different flexor tendon anatomic zones. We found zones II (75%) and IV (78.3%) were the most commonly involved flexor tendon zones in the hand.
We found that 48.7% of the cases had MSU crystal deposition in the ulnocarpal joints. Another DECT study of 97 patients with gout showed 54.6% of patients had urate deposition in the triangular fibrocartilage complex/distal radioulnar joint.[19] This is similar to our study. A study on arthroscopic findings of seven patients with wrist gout found focal crystalline precipitates on the scapholunate and lunotriquetral ligaments but not on the triangular fibrocartilage complex.[21]
We found that the carpal tunnel was the most commonly involved soft tissue site in the hand and wrist (71.8%). Urate deposition in the carpal tunnel can cause secondary carpal tunnel syndrome.[22] [23]
DECT has relatively high sensitivity and specificity for the diagnosis of gout. Sensitivity and specificity for DECT was 100% and 79% to 89%, respectively in a study of 31 patients who underwent both DECT and joint aspiration.[24] A meta-analysis of seven studies found DECT to have a sensitivity of 88% and specificity of 90% for gout.[25]
Our study has some limitations. It was retrospective with a small number of cases and all DECT examinations were evaluated by a single radiologist. Patients were recruited from orthopaedic clinics, where their gout may have been partially treated. All included patients had chronic tophaceous gout, which is usually associated with a number of co-morbidities, including hypertension, cardiovascular disease, renal impairment, diabetes, obesity, and hyperlipidaemia. So, this may contribute to selection bias. Smaller concentrations of MSU may not be accurately seen on DECT,[26] so it is possible that small MSU crystal deposits may not have been detected his method. False-negative results can also occur in tophi with lower crystal concentrations. In short, the population of the study is heterogeneous and small. Further multicentre studies with more patients would be helpful to confirm our findings.
In this study, we have provided a detailed analysis of hand and wrist urate distribution in gout. Our study supports that gout affects different locations within the soft tissue and joints with predilection for particular areas.
