Contrast-Enhanced Ultrasound with Perfluorobutane for Hepatocellular Cancer Surveillance: Our Initial Local Experience

Hong Kong J Radiol 2024 Mar;27(1):e16-27 | Epub 20 March 2024





¹ Department of Imaging and Interventional Radiology, Prince of Wales Hospital, Hong Kong SAR, China

² Department of Imaging and Interventional Radiology, Faculty of Medicine, The Chinese University of Hong Kong, Hong Kong SAR, China

³ Medical Data Analytic Centre, Department of Medicine and Therapeutics, Faculty of Medicine, The Chinese University of Hong Kong, Hong Kong SAR, China



  Full Article in PDF

According to the Hong Kong Cancer Registry, hepatocellular carcinoma (HCC) is currently the fifth leading cancer and third leading cause of cancer deaths in Hong Kong despite the declining incidence of hepatitis B infection in recent years.[1] Chronic hepatitis B infection has an established association with, and is the major cause of, HCC. The latest territory-wide study performed in 2015 to 2016 showed a prevalence of 7.8% for hepatitis B infection in Hong Kong.[2] Many individuals with known infection are in imaging surveillance programmes, mostly using ultrasound as a screening tool.



Ultrasound is a relatively simple, radiation-free, widely available, low-cost imaging procedure with good patient acceptance. Ultrasound alone, however, is of limited sensitivity and is inadequate for an imaging diagnosis of HCC, which relies on the characteristic enhancement pattern of the lesion.[3]



The use of contrast-enhanced ultrasound dates back to 1969, when agitated normal saline was used in echocardiography, progressing to the wider application of manufactured microbubbles in the 2000s to image different organs. Microbubbles are formed from an inert gas protected by an outer shell and are smaller than red blood cells. After intravenous injection, they can pass through the pulmonary capillaries and enter the systemic circulation. Being mainly extracellular blood pool agents, they stay in the vasculature, unlike iodinated contrast for computed tomography (CT) which is a soluble agent that will pass through vessel walls and can enter hepatocytes and the nephron. Both are able to provide information about the vascular pattern of the lesion of concern. The mechanism of action is that microbubbles increase the backscatter of ultrasound signal. They oscillate under ultrasound and the non-linear oscillations can cause harmonic emissions. These signals can be captured and processed to produce images with enhanced differentiation between vascular structures (with microbubbles within) and adjacent soft tissue.[4]



Currently, second-generation ultrasound contrast agents (UCAs) are in use worldwide. Commonly known second-generation UCAs include sulphur hexafluoride, which is used in Hong Kong, and perfluorobutane (PFB) which has been licensed in multiple countries for liver-specific imaging. Sonazoid (GE Healthcare, Milwaukee [WI], US) essentially contains PFB microbubbles stabilised with a lipid coating with a well-defined diameter of approximately 3 μm. Sonazoid to be used in imaging is prepared by reconstitution with 2-mL sterile water for injection. The usual recommended dose was 0.015 mL/kg. In addition to the standard vascular phases including arterial, portal venous and delayed phases, PFB has the unique ability to be taken up by the Kupffer cells. This enables Kupffer phase imaging which resembles the imaging obtained with a nuclear hepatobiliary scan. The microbubbles can stay in the Kupffer cells for up to a few hours. This aids in lesion detection and characterisation. During the Kupffer phase, the liver parenchyma should normally be uniformly enhancing; the presence of defects would indicate lesions devoid of Kupffer cells, allowing otherwise subtle lesions, in particular, lesions that may be isoechoic on brightness mode (B-mode) ultrasound, to become visible. Most malignancies, hepatic or metastatic, do not contain Kupffer cells, whereas benign entities such as focal nodular hyperplasia do contain such cells. This is comparable with using a liver-specific contrast agent such as gadoxetic acid in magnetic resonance imaging (MRI) for hepatobiliary phase imaging. Leveraging this unique property of PFB, an imaging technique called defect reperfusion imaging was developed, using an additional contrast bolus injection for evaluation of the vascular characteristics of a defect in the Kupffer phase, further improving its diagnostic value.[5]



The time frames for the phases are as follows (assuming a normal cardiac output): the arterial phase starts at 10 seconds, peaks at 30 to 50 seconds, and is sustained until approximately 1 minute; the portovenous phase starts at 30 seconds, peaks at 80 to 90 seconds, and is sustained until approximately 2 minutes; the late vascular phase then ensues and is followed by the Kupffer phase (also called the post-vascular phase), which starts at approximately 10 minutes.[6]



In 2008, the superiority of contrast-enhanced ultrasound with PFB (PFB-CEUS) versus unenhanced ultrasound in the diagnosis of focal liver lesions was confirmed by a phase III clinical trial by Miyamoto et al.[7] One study reported an even higher sensitivity and accuracy for PFB-CEUS than contrast-enhanced CT in detecting hepatic malignancy.[8] CEUS has value for lesions that are indeterminate on CT or MRI due to its heightened sensitivity in detecting vascular enhancement and real-time continuous evaluation of the enhancement pattern.[9] Compared with the other widely applied second-generation UCAs, several studies have confirmed the non-inferiority of PFB.[10] [11] A retrospective study published in 2010 by Kan et al[12] found a high sensitivity and specificity for detection of small (≤ 2 cm) HCCs with additional tumours detected by PFB-CEUS compared with contrast-enhanced CT.



Beyond aiding initial imaging diagnosis, PFB has been found to increase the localisation rate of focal hepatic lesions for percutaneous biopsy.[13] [14] Along the same lines, lesion localisation for radiofrequency ablation can also be improved, with a higher success rate and fewer treatment sessions required.[15] [16] [17]



Several studies have explored the utility of PFB in prediction of treatment response of HCC treated with transarterial chemoembolisation and other targeted therapies, using a reduction in lesion vascularity in an early post-intervention scan to predict the outcome.[18] [19] [20] [21] In 2021, Funaoka et al[22] published their retrospective study testing the ability of PFB to evaluate the efficacy of radiotherapy for HCC, which further expands the potential indications of PFB-CEUS as the results were encouraging.



With the increasing recognition of PFB’s utility, a consensus statement with guidelines for PFB’s use was released in 2020 by the Asian Federation of Societies for Ultrasound in Medicine and Biology.[6] In the same year, the World Federation for Ultrasound in Medicine and Biology also published a good practice recommendation.[9] Part of the reporting standardisation of liver imaging is reliant on the use of the Liver Reporting and Data System (LI-RADS). The current version of LI-RADS, however, only applies to CEUS performed with sulphur hexafluoride microbubbles (SonoVue) and lipid-coated perfluoropropane microbubbles (Definity). An early study of a modified CEUS LI-RADS for PFB showed the LI-RADS categories LR-5 and LR-M to be good predictors of HCC and non-HCC malignancies.[23] A recent study also found no statistically significant difference between modified CEUS LI-RADS, CT, and the 2018 version of MRI LI-RADS in 31 histologically proven lesions.[24] Further inclusion of PFB is to be expected in the next version of CEUS LI-RADS, which can provide formal recognition of its value in HCC imaging.[25]



PFB has an established low-risk profile. The incidence of adverse events was quoted to be 0.5% to 11.4%.[6] [26] [27] No serious adverse events have been reported to date.[6] Common adverse effects include diarrhoea, proteinuria, and headache.[6] The overwhelming majority of these reported events did not require treatment.[6] [26] [27] Urticaria has been reported as an adverse effect. It must be noted that despite the lack of reported cases, anaphylaxis is a possible risk for any injectable agent. The most likely culprit for this potential allergic reaction is the lipid shell of PFB, which is derived from eggs. Therefore, egg allergy is the one and only contraindication to PFB use. Patients with renal insufficiency, or iodine or gadolinium contrast allergy, can undergo PFB-CEUS.



As PFB is an unregistered drug in Hong Kong, it is not currently in widespread use. We performed a pilot study to investigate the value of PFB-CEUS compared with conventional B-mode ultrasound for surveillance detection of HCC in high-risk patients.



This was a prospective, single-centre, single-arm study performed in Prince of Wales Hospital, a tertiary referral centre with hepatology and hepatobiliary surgery services available. The STARD (Standards for Reporting of Diagnostic Accuracy Studies) 2015 guidelines were used for reporting our results.



Patients were recruited by convenience sampling through clinician referral. A total of 50 patients were recruited from the period 1 June 2020 to 3 May 2021. The inclusion and exclusion criteria are listed in Table 1.

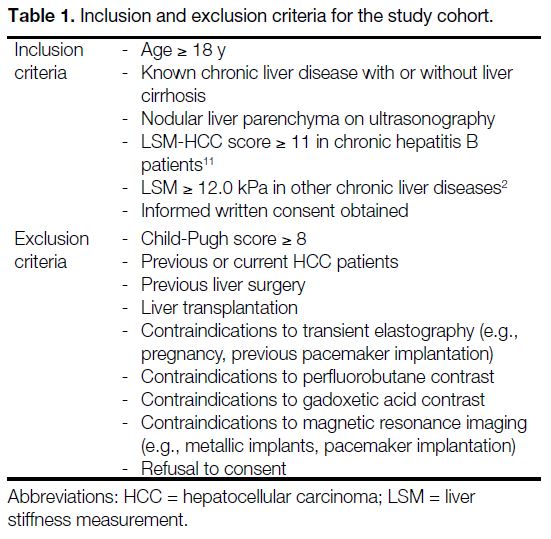

Table 1. Inclusion and exclusion criteria for the study cohort.



Eligible patients were assessed via a standard workflow, starting with B-mode ultrasound and PFB-CEUS of the liver performed with the same settings, followed by MRI with gadoxetic acid (Primovist; Bayer Schering Pharma, Berlin, Germany) within 3 weeks of the initial ultrasound scan (Figure 1). The B-mode ultrasound and PFB-CEUS were performed by two registered sonographers who have > 20 years of ultrasound experience, following standard technical specifications (Tables 2 and 3). Standard protocol was also implemented for the gadoxetic acid–enhanced MRI (Table 4). The assessors were not blinded to clinical information of patients or past radiological investigations.

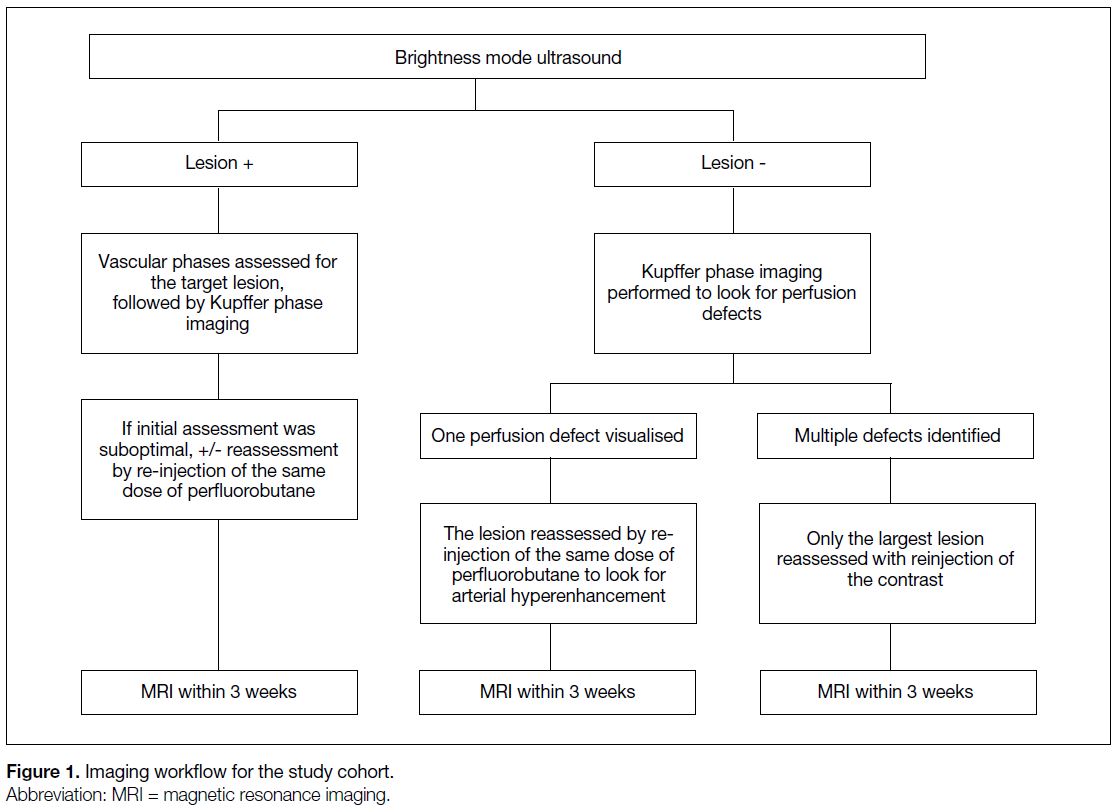

Figure 1. Imaging workflow for the study cohort.

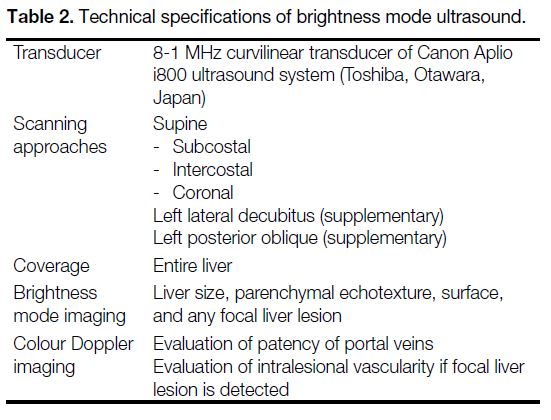

Table 2. Technical specifications of brightness mode ultrasound.

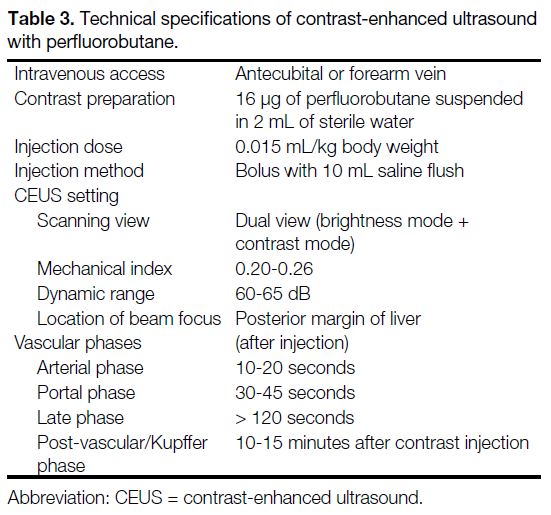

Table 3. Technical specifications of contrast-enhanced ultrasound with perfluorobutane.

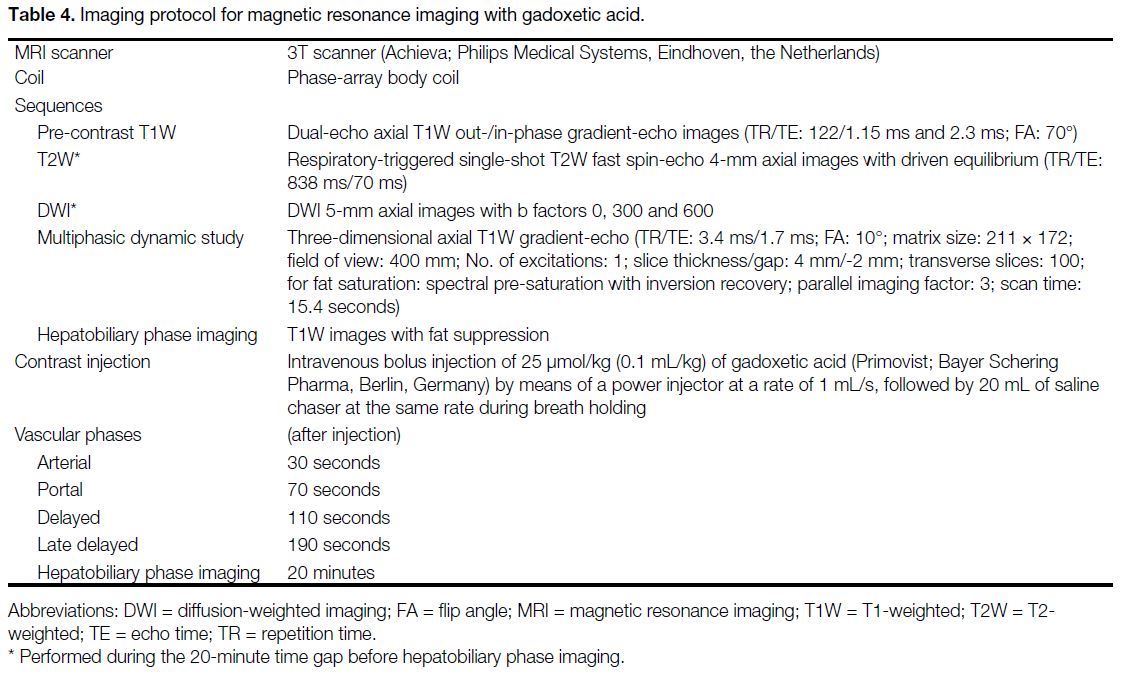

Table 4. Imaging protocol for magnetic resonance imaging with gadoxetic acid.



The findings of B-mode ultrasound, PFB-CEUS, and MRI were interpreted and reported separately by three radiologists who had > 5 years of experience in hepatobiliary imaging. As there were no standardised interpretation criteria for B-mode or PFB-CEUS in the diagnosis of HCC, interpretation of the findings from these two scans were based on a 3-point Likert scale (Table 5), while MRI findings were interpreted based on the 2018 version of LI-RADS.[28] The radiologists interpreting MRI were blinded to the results of ultrasound and vice versa. Any equivocal MRI findings were resolved by consensus between two radiologists subspecialising in hepatobiliary radiology. Those with negative findings on both PFB-CEUS and MRI, meaning no focal lesion or focal lesion(s) with low probability of HCC, followed the standard surveillance programme. Patients with intermediate probability for HCC were managed at the discretion of the referring team and underwent closer interval follow-up imaging or biopsy. Patients diagnosed with HCC were referred to the Joint Hepatoma Clinic of Prince of Wales Hospital for further management.

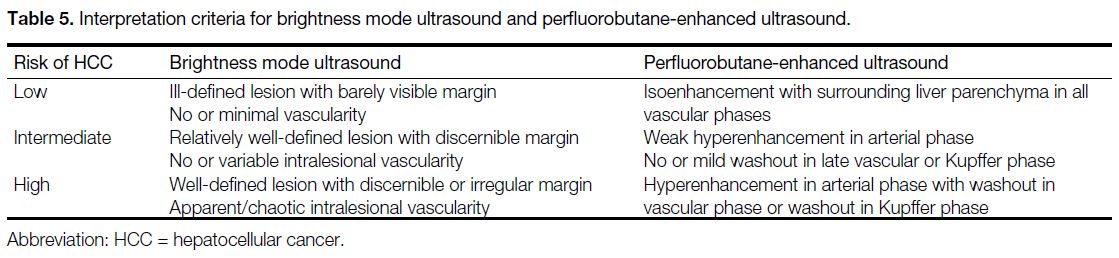

Table 5. Interpretation criteria for brightness mode ultrasound and perfluorobutane-enhanced ultrasound.



For patients undergoing hepatic surgery or biopsy, the final diagnosis was based on histological findings. For those who did not undergo surgery or biopsy, the diagnosis of HCC was based on MRI features fulfilling the LR-5 or LR-4 category of the 2018 version of LI-RADS.[28] They were managed in a similar manner in our clinical practice. For LR-3 lesions, which were not biopsied, additional follow-up CT or MRI was performed at the discretion of the referring clinical team.



The primary endpoints were the detection rate of small (≤ 2 cm) HCCs on B-mode US and PFB-CEUS. The detection rate was defined as the percentage of positive findings on the respective imaging modality confirmed with a reference standard out of all patients in the study cohort. A positive finding was defined as a high-risk lesion on the Likert scale.



The secondary endpoints included the detection rate of all sizes of HCC and immediate (day 0), short-term (day 7) and long-term (day 90) adverse event rates. Adverse events were recorded according to the CTCAE (Common Terminology Criteria for Adverse Events) version 5.0 with structured telephone interviews at 1 week and 90 days after the ultrasound examination.[29]



A total of 50 patients were included in the study, consisting of 32 men and 18 women with a mean age of 62.6 years (Table 6). The majority (72%) of the patients were in the HCC surveillance programme due to hepatitis B. All of the patients had had prior surveillance imaging. For 94% of the patients, the previous surveillance scans were B-mode ultrasound while the rest were contrast-enhanced CT. The median time from prior surveillance imaging to ultrasound evaluation our study was 12.5 months. The median time from PFB-CEUS to MRI was 11 days. None of the detected lesions underwent biopsy or surgical resection during the study period.

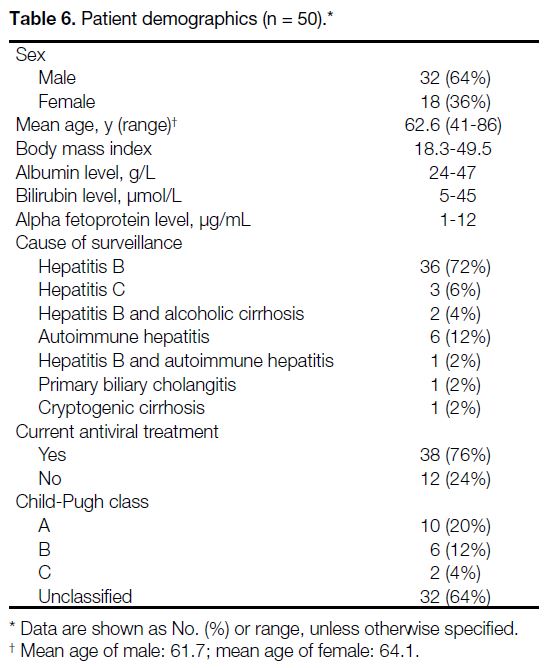

Table 6. Patient demographics (n = 50).



The detection rates of small HCCs were 4% (n = 2) by B-mode ultrasound and 6% (n = 3) by PFB-CEUS. A total of four small HCCs were identified in our cohort (Table 7). Figures 2, 3, 4, and 5 show the key imaging features of these four HCCs found in our cohort.

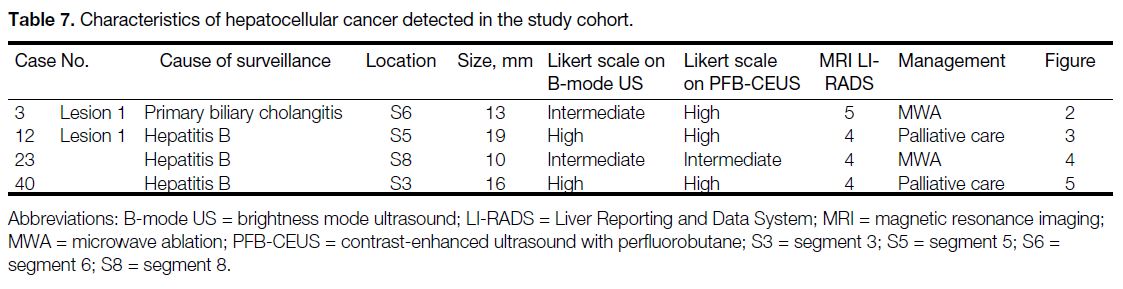

Table 7. Characteristics of hepatocellular cancer detected in the study cohort.

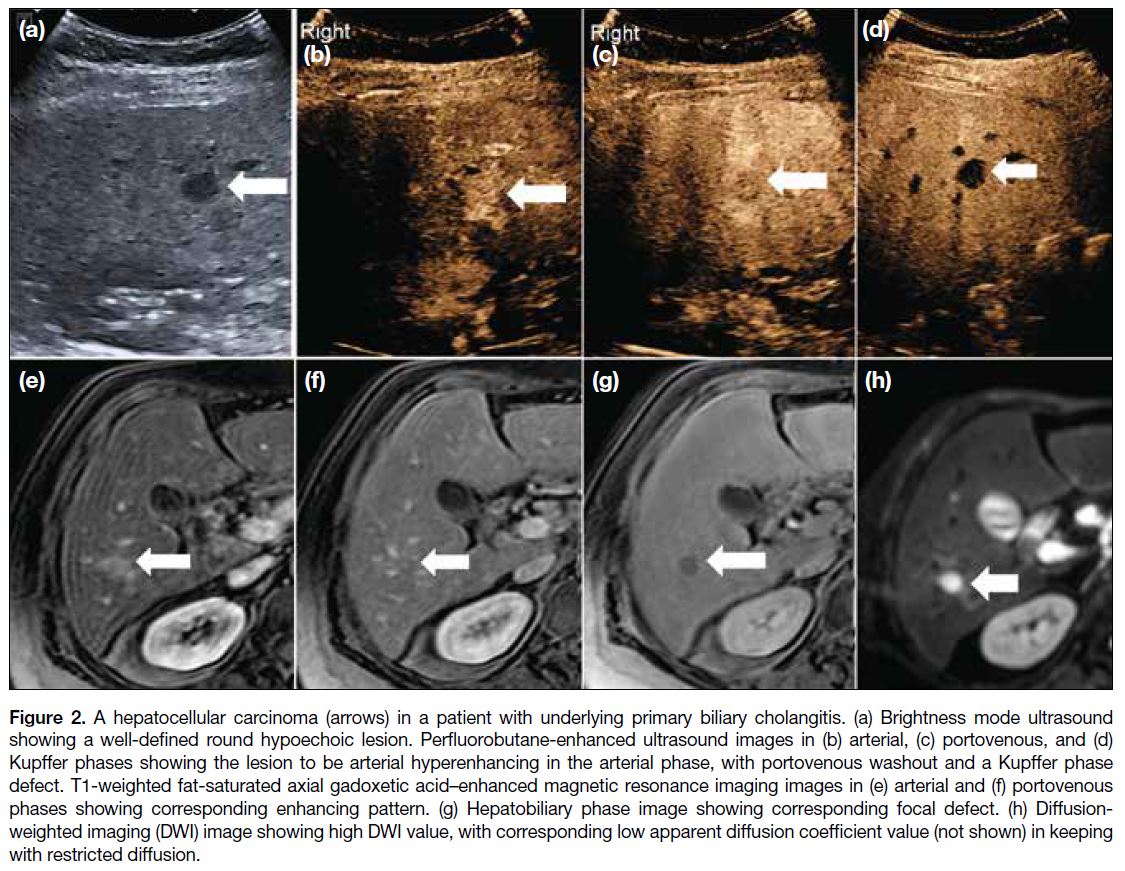

Figure 2. A hepatocellular carcinoma (arrows) in a patient with underlying primary biliary cholangitis. (a) Brightness mode ultrasound showing a well-defined round hypoechoic lesion. Perfluorobutane-enhanced ultrasound images in (b) arterial, (c) portovenous, and (d) Kupffer phases showing the lesion to be arterial hyperenhancing in the arterial phase, with portovenous washout and a Kupffer phase defect. T1-weighted fat-saturated axial gadoxetic acid–enhanced magnetic resonance imaging images in (e) arterial and (f) portovenous phases showing corresponding enhancing pattern. (g) Hepatobiliary phase image showing corresponding focal defect. (h) Diffusion-weighted imaging (DWI) image showing high DWI value, with corresponding low apparent diffusion coefficient value (not shown) in keeping with restricted diffusion.

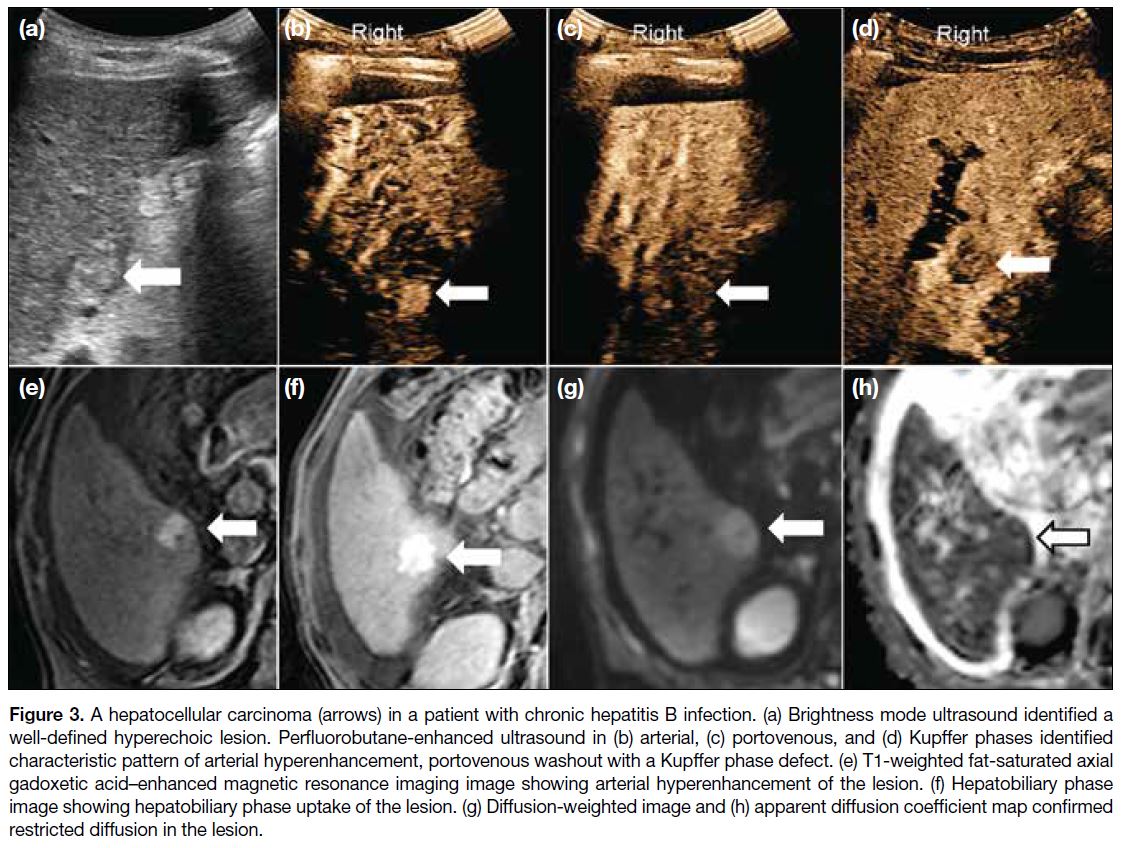

Figure 3. A hepatocellular carcinoma (arrows) in a patient with chronic hepatitis B infection. (a) Brightness mode ultrasound identified a well-defined hyperechoic lesion. Perfluorobutane-enhanced ultrasound in (b) arterial, (c) portovenous, and (d) Kupffer phases identified characteristic pattern of arterial hyperenhancement, portovenous washout with a Kupffer phase defect. (e) T1-weighted fat-saturated axial gadoxetic acid–enhanced magnetic resonance imaging image showing arterial hyperenhancement of the lesion. (f) Hepatobiliary phase image showing hepatobiliary phase uptake of the lesion. (g) Diffusion-weighted image and (h) apparent diffusion coefficient map confirmed restricted diffusion in the lesion.

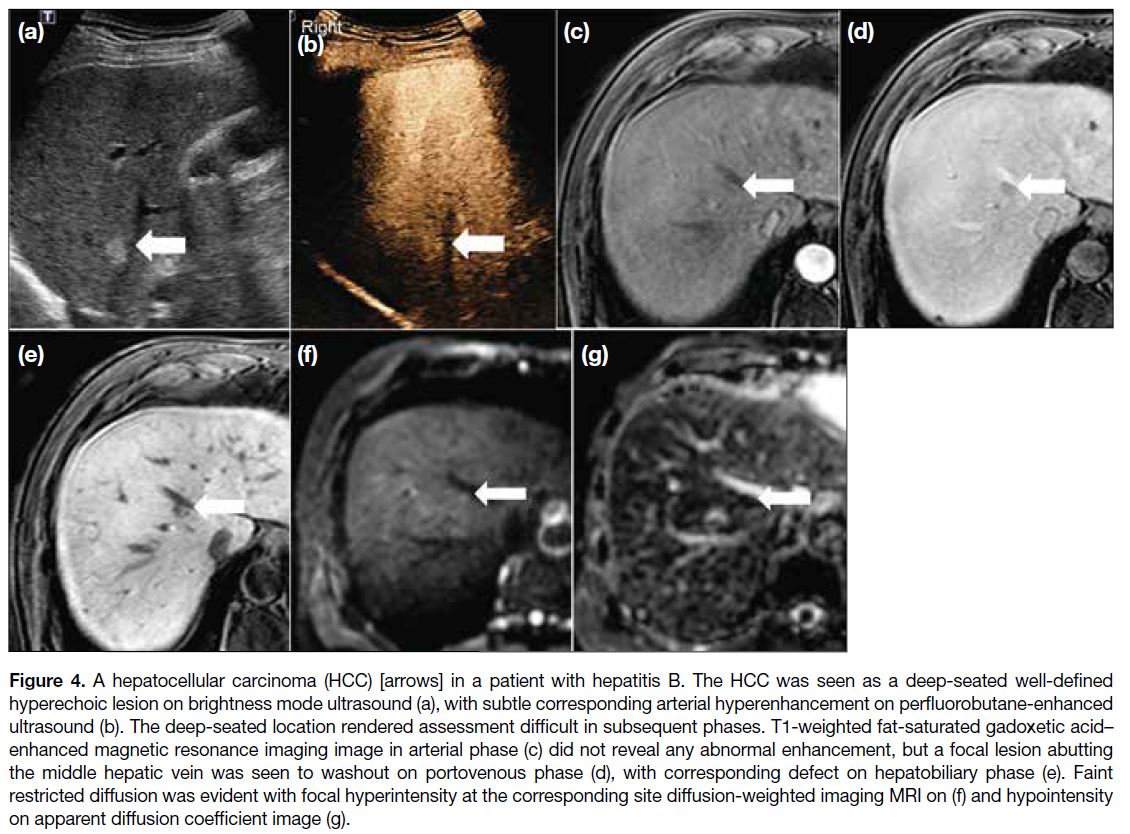

Figure 4. A hepatocellular carcinoma (HCC) [arrows] in a patient with hepatitis B. The HCC was seen as a deep-seated well-defined hyperechoic lesion on brightness mode ultrasound (a), with subtle corresponding arterial hyperenhancement on perfluorobutane-enhanced ultrasound (b). The deep-seated location rendered assessment difficult in subsequent phases. T1-weighted fat-saturated gadoxetic acid–enhanced magnetic resonance imaging image in arterial phase (c) did not reveal any abnormal enhancement, but a focal lesion abutting the middle hepatic vein was seen to washout on portovenous phase (d), with corresponding defect on hepatobiliary phase (e). Faint restricted diffusion was evident with focal hyperintensity at the corresponding site diffusion-weighted imaging MRI on (f) and hypointensity on apparent diffusion coefficient image (g).

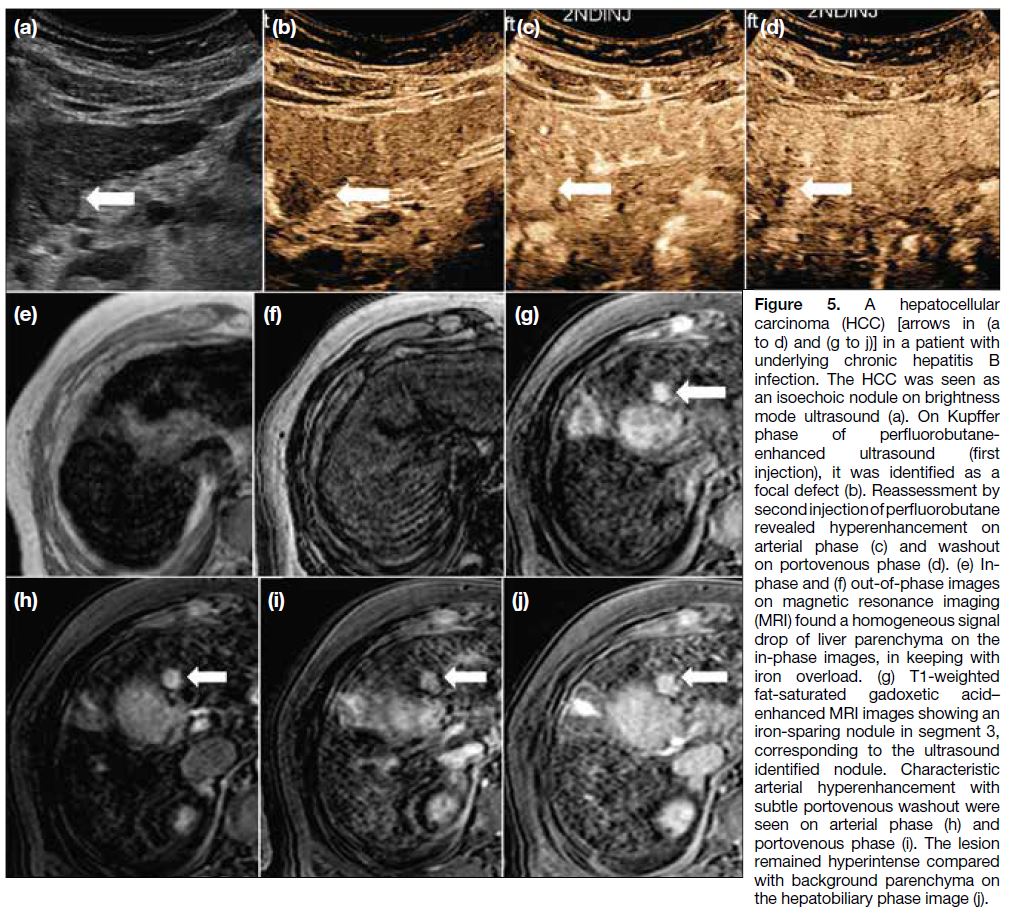

Figure 5. A hepatocellular carcinoma (HCC) [arrows in (a to d) and (g to j)] in a patient with underlying chronic hepatitis B infection. The HCC was seen as an isoechoic nodule on brightness mode ultrasound (a). On Kupffer phase of perfluorobutane-enhanced ultrasound (first injection), it was identified as a focal defect (b). Reassessment by second injection of perfluorobutane revealed hyperenhancement on arterial phase (c) and washout on portovenous phase (d). (e) In-phase and (f) out-of-phase images on magnetic resonance imaging (MRI) found a homogeneous signal drop of liver parenchyma on the in-phase images, in keeping with iron overload. (g) T1-weighted fat-saturated gadoxetic acid–enhanced MRI images showing an iron-sparing nodule in segment 3, corresponding to the ultrasound identified nodule. Characteristic arterial hyperenhancement with subtle portovenous washout were seen on arterial phase (h) and portovenous phase (i). The lesion remained hyperintense compared with background parenchyma on the hepatobiliary phase image (j).



There was no HCC > 2 cm identified in the study cohort. The immediate adverse event rate was 0%, the short-term adverse event rate was 12% (n = 6), and the long-term adverse event rate was 6% (n = 3) [Table 8]. All of the adverse events were mild and self-limiting, with an uncertain causal relationship to PFB administration.

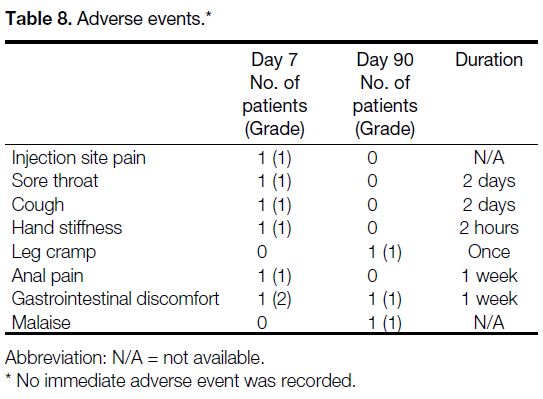

Table 8. Adverse events.



In our study, PFB-CEUS had a slightly better detection rate of HCC than B-mode ultrasound. Although all of the HCCs were detectable by either modality, B-mode ultrasound falsely classified two of the lesions as intermediate risk on the Likert scale, while PFB-CEUS was able to add value by reclassifying one of these lesions underclassified by B-mode ultrasound as a high-risk lesion. This finding is in keeping with that of Park et al,[30] though no statistical significance was identified in their study for the detection of additional small HCCs by PFB-CEUS.



With this initial trial of PFB application, we have learned a few lessons in its use. First of all, deep lesions are difficult to evaluate by PFB-CEUS. The one false-negative lesion on PFB-CEUS was a lesion located deep in the parenchyma, 9 cm from the skin surface (Figure 3). The difficulty of evaluating deep lesions by PFB-CEUS was recognised due to ultrasound attenuation in low mechanical index settings.[6] Although switching to high mechanical index settings in B-mode ultrasound can aid assessment, the limited assessment by PFB-CEUS precludes its value addition in deep lesion characterisation.



In addition to the technical aspect of PFB use, we made an observation of a unique property. One of the LR-4 lesions was identified in the Kupffer phase as a defect on PFB-CEUS, while showing hyperintensity on the hepatobiliary phase in gadoxetic acid–enhanced MRI. This evokes a complex discussion involving both PFB, liver-specific MRI contrast properties and HCC cell biology. PFB-CEUS has often been compared with gadoxetic acid–enhanced MRI for its characteristic liver-specific phase—the Kupffer phase. The two phases share similarities by predominantly identifying HCC as focal defects, but have fundamentally different principles underlying them. For gadoxetic acid–enhanced MRI, the hepatobiliary phase appearance is based upon the organic anion transporting polypeptide 8 (OATP8) expression of cells. Normal hepatocytes take up contrast through OATP, while both early and progressed HCCs often have a reduced expression of OATP during hepatocarcinogenesis, reducing their contrast uptake in the hepatobiliary phase, leading to a hepatobiliary phase defect.[31] Hepatobiliary phase–hyperintense HCC is, however, not uncommon, constituting up to 10% of cases.[32] It has been suggested that hepatobiliary phase hyperintensity may be seen in some moderately- or well-differentiated HCCs, but has been reported in poorly differentiated HCC as well and is due to paradoxical upregulation of OATP.[33] On the other hand, for PFB-CEUS, the contrast between normal parenchyma and HCC is achieved by differences in the number of Kupffer cells. Kupffer cells are liver-specific macrophages, which phagocytose the microbubbles, causing enhancement of hepatic parenchyma. The Kupffer cell count is seen to decline with hepatocarcinogenesis and has been suggested to decline more slowly than OATP8 expression.[32] The presence of a Kupffer phase defect strongly suggests progression of HCC. Korenaga et al[34] found that all the moderately and poorly differentiated HCCs in their study showed Kupffer phase defects while well-differentiated HCCs tended to lack them. Our LR-4 lesion did not undergo histological confirmation, but we speculated that it is a moderately differentiated HCC based on the uptake. Further studies are warranted to look into the potential use of PFB-CEUS versus gadoxetic acid–enhanced MRI for predicting the histological differentiation of HCC.



We have also identified a potential advantage of using PFB-CEUS, which is in patients with hepatic iron overload. One of the patients was found to have heavy iron deposition on MRI. This markedly impaired the assessment on hepatobiliary phase as the whole liver remained hypointense due to iron deposition. Iron overload is a recognised risk factor for HCC development. Due to the paramagnetic effect of iron, iron-overloaded liver parenchyma shows markedly hypointense signal on T1-weighted and T2-weighted images, providing excellent contrast for iron-sparing HCC. It should be noted, however, that siderotic nodules may also be found in such patients. Siderotic nodules are hypointense, making them inconspicuous due to a similar hypointense appearance to the surrounding liver tissue which is also iron-overloaded. With the similar liver-specific nature of PFB and liver-specific MRI contrast, we pondered the possibility of the superiority of use of PFB-CEUS in iron-overloaded liver in demonstrating a liver-specific phase defect. Up to now, the effect of hepatic iron overload on Kupffer cell function and Kupffer phase defects for HCC detection has not been described. Our study has identified a unique area in PFB-CEUS use that has not been previously described, and further investigation into the use of PFB-CEUS Kupffer phase imaging as an alternative screening method for patients with hepatic iron overload should be carried out. This also brings out the possibility of using PFB-CEUS in other conditions where the hepatobiliary phase assessment on MRI is limited, e.g., patients with poor hepatic function, severe cirrhosis, or cholestasis.[30]



The main limitation of our study is the small sample size and low incidence of HCC in our cohort, which limits the potential for statistical evaluation. This study framework served more as a standardised approach to our initial experience with PFB use in HCC surveillance. Despite the small size, we were able to identify a few points in the use of PFB that require further development and found additional value of PFB use that is in keeping with findings in the literature. Further studies with a larger sample size may be attempted to allow for statistical evaluation of this slowly maturing modality of choice.



PFB-CEUS is an emerging imaging modality in evaluation of liver lesions and HCC detection, with increased recognition worldwide and expanding potential uses. Our initial local experience provides positive agreement with the literature and identified areas requiring further investigation, including correlation of Kupffer phase defects and hepatobiliary phase defects with histological differentiation, and potential use of the Kupffer phase in assessment of patients with iron-overloaded livers.
